Solar Mounting Systems · Est. 2012

The part of your solar plant
nobody notices.
We make it last 25 years.

Ground mounts, rooftop systems, carports and C/Z purlins — engineered, galvanized and load-tested to outlast the panels above them.

Request a QuoteExplore Systems
Scroll
Product Lines

9 Product Systems

View Full Specs
Ground Mount - view 1Ground Mount - view 2Ground Mount - view 3
1 Products

Ground Mount

Utility-scale ground mounting systems

Roof Mount - view 1Roof Mount - view 2Roof Mount - view 3
3 Products

Roof Mount

Commercial, industrial & residential roof solutions

Special & Carport - view 1Special & Carport - view 2Special & Carport - view 3
3 Products

Special & Carport

Agri-PV, floating PV and solar carports

Components & Accessories - view 1Components & Accessories - view 2Components & Accessories - view 3
2 Products

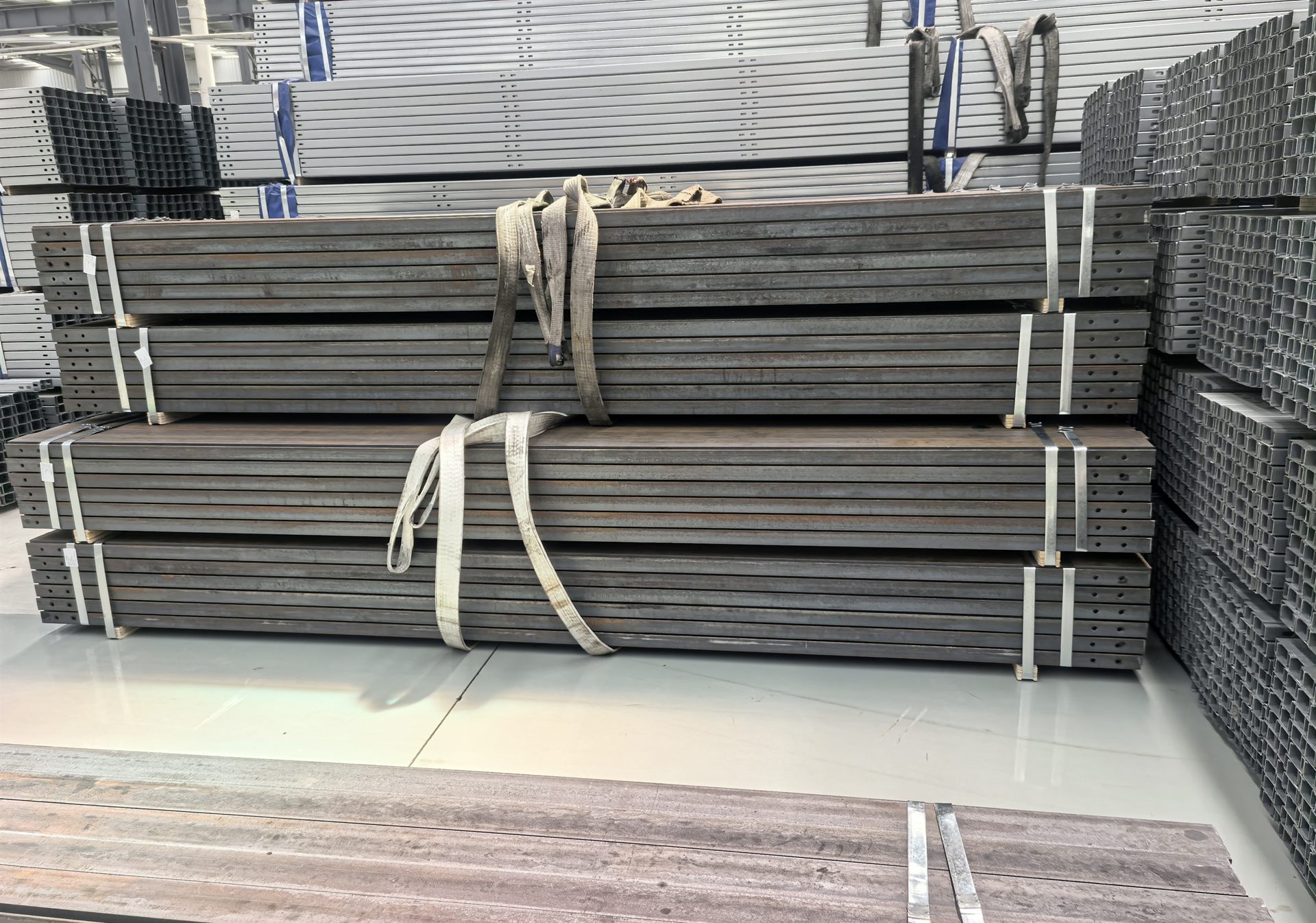

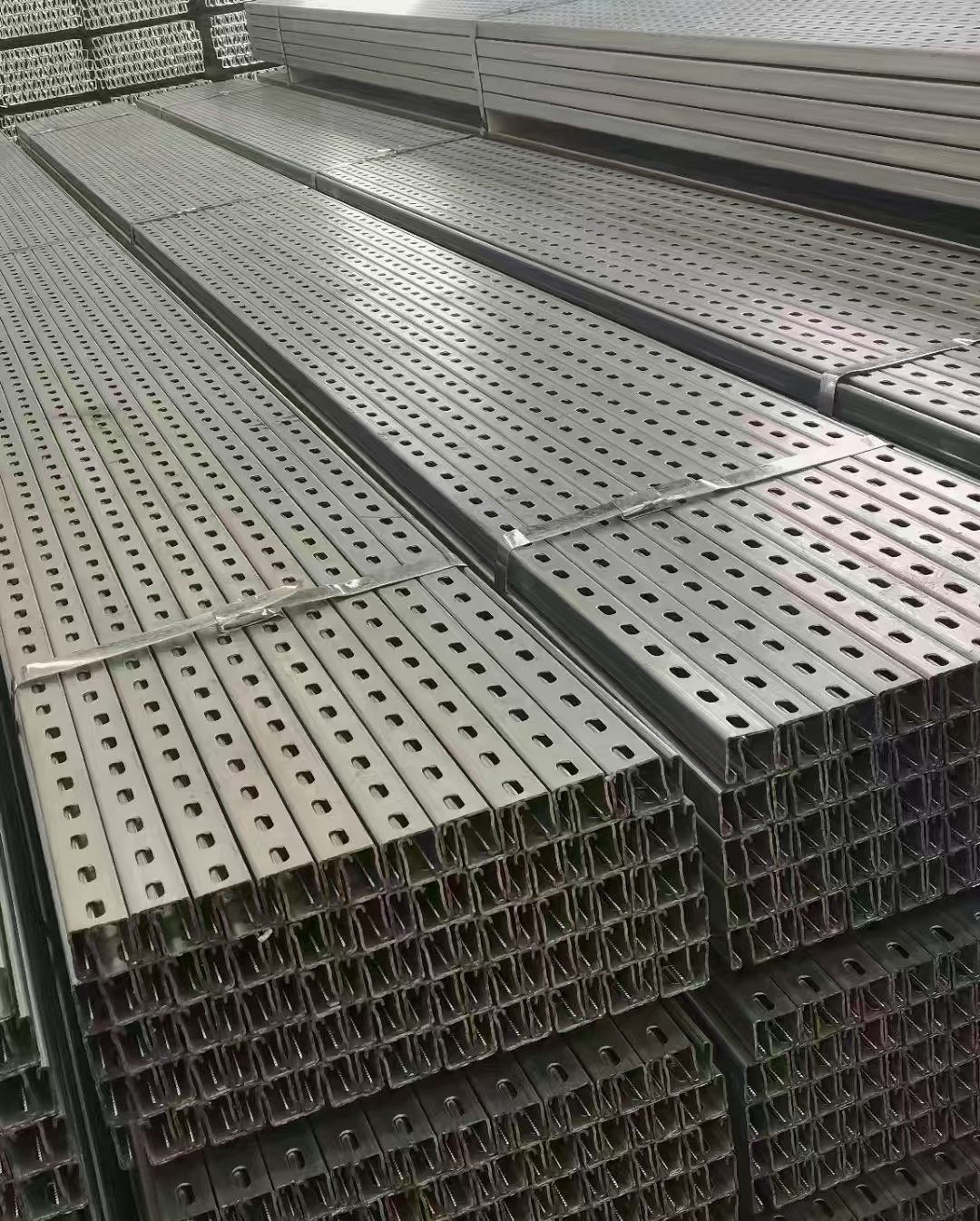

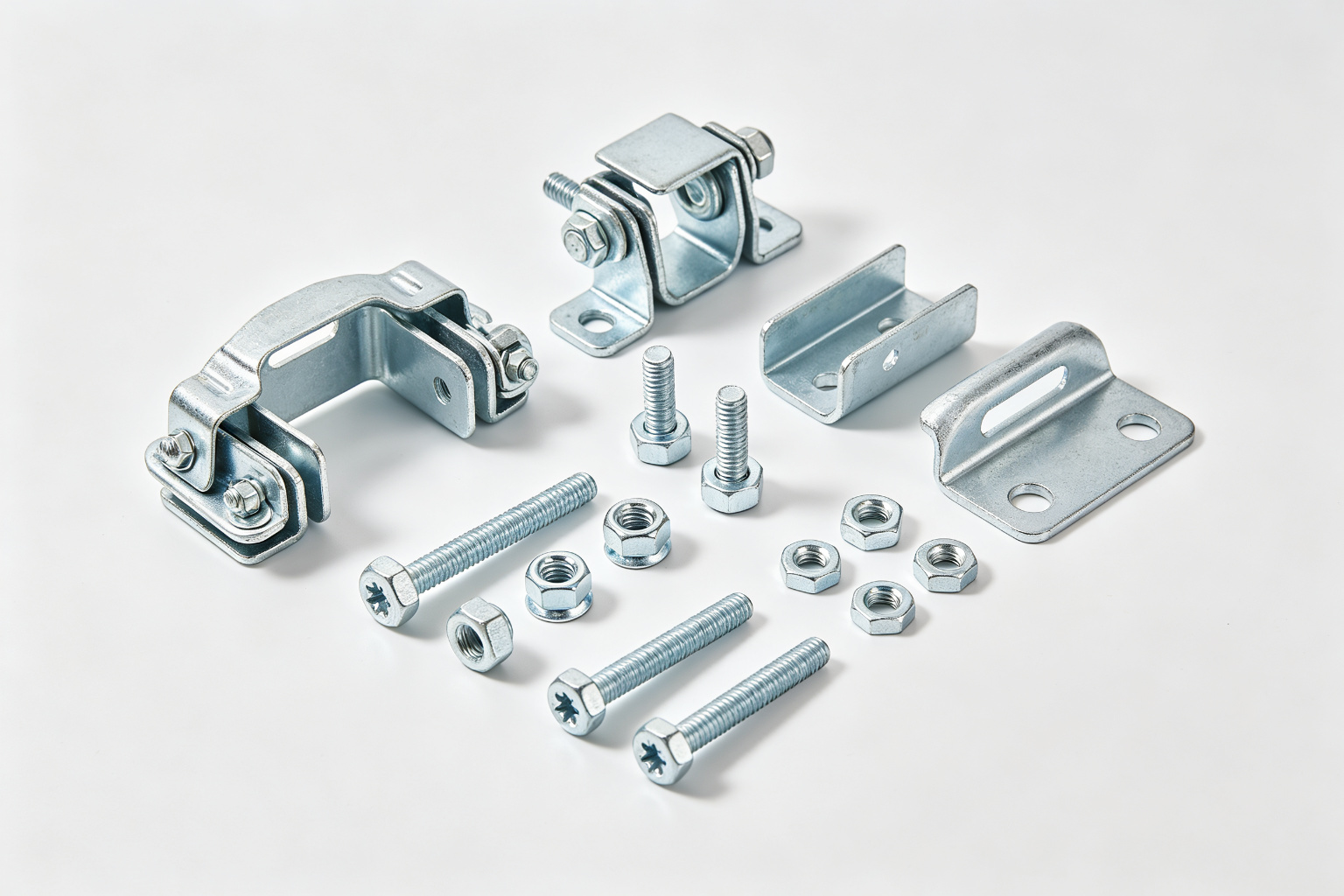

Components & Accessories

C/Z purlins and mounting hardware

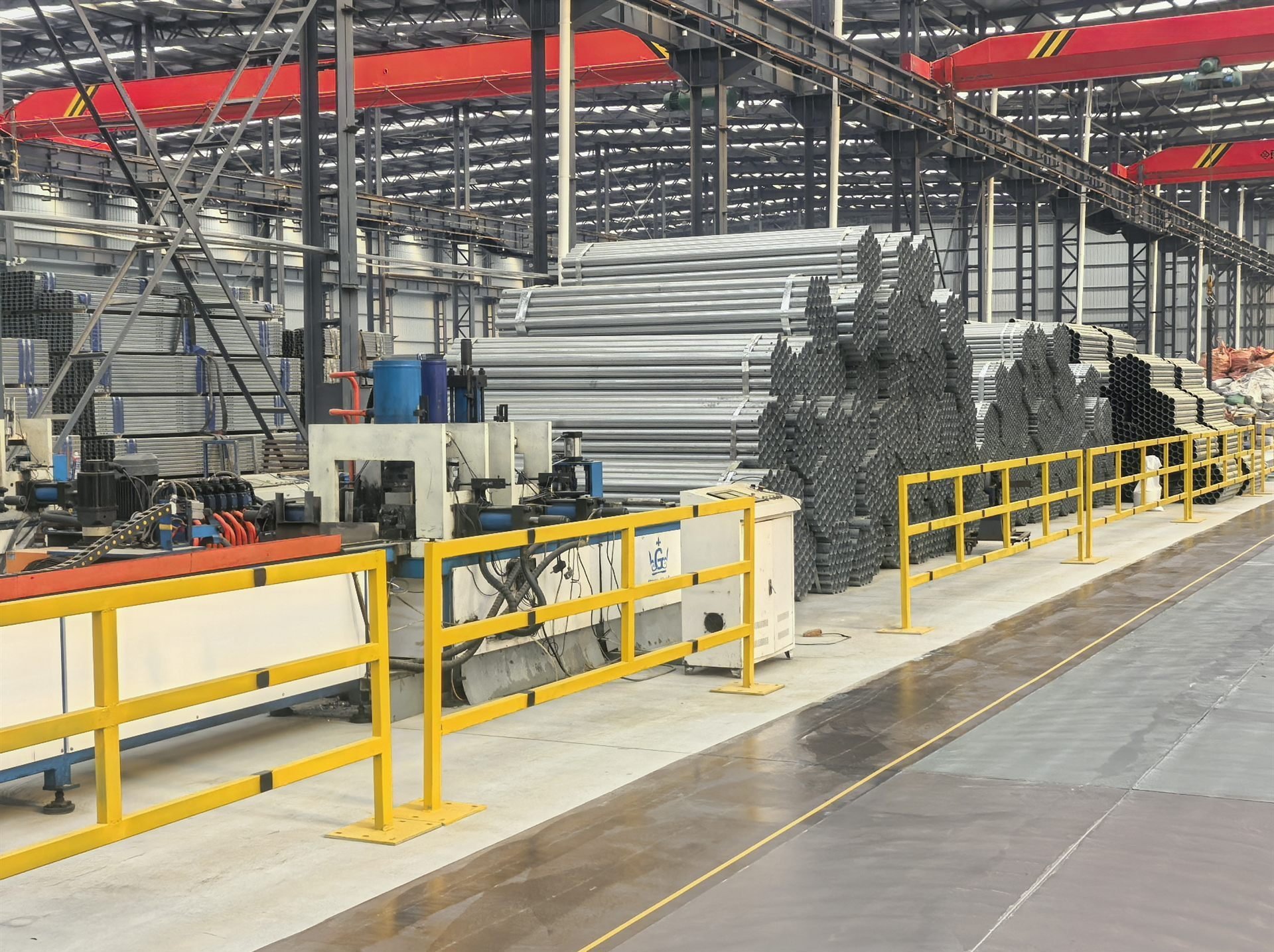

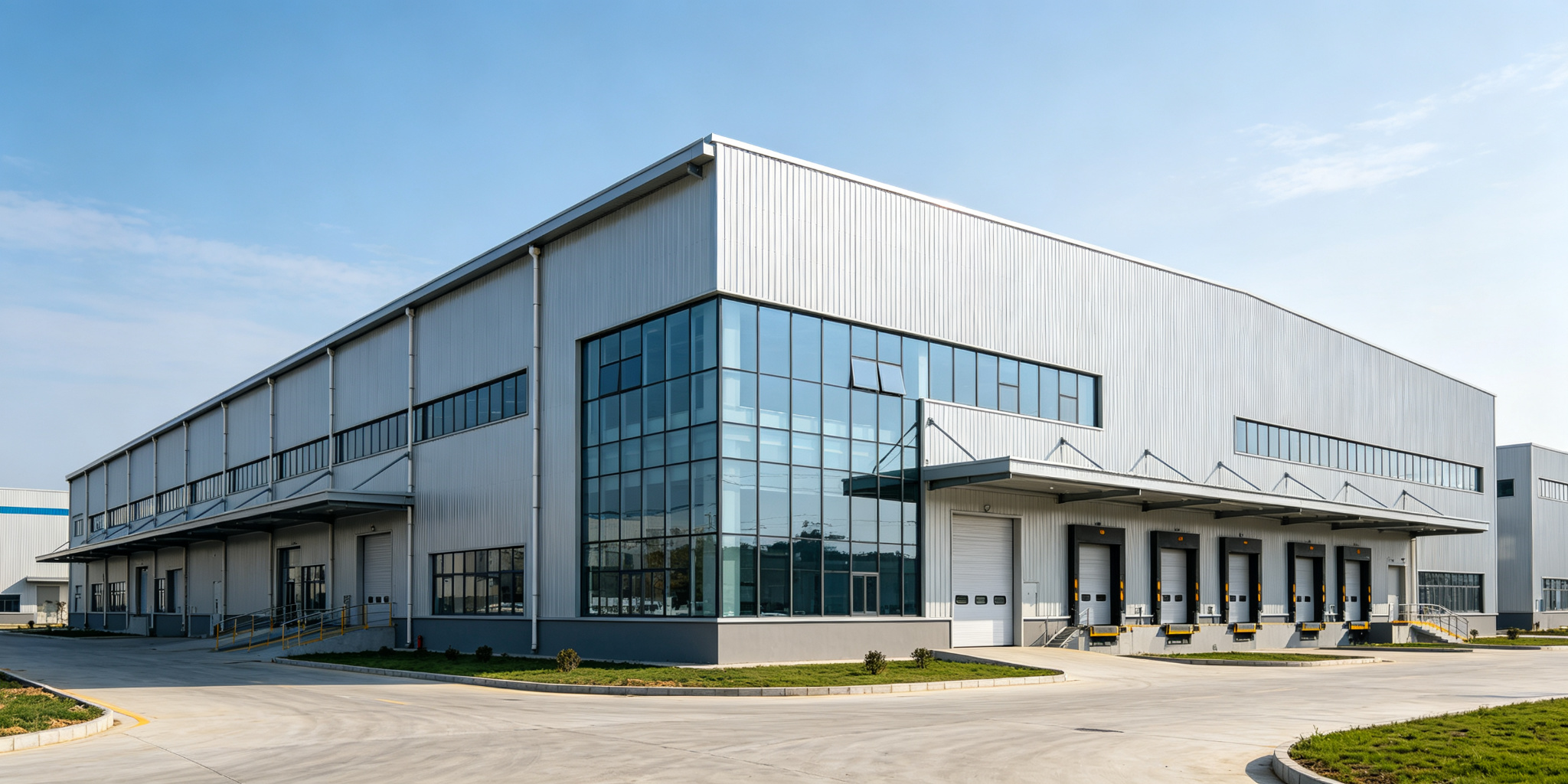

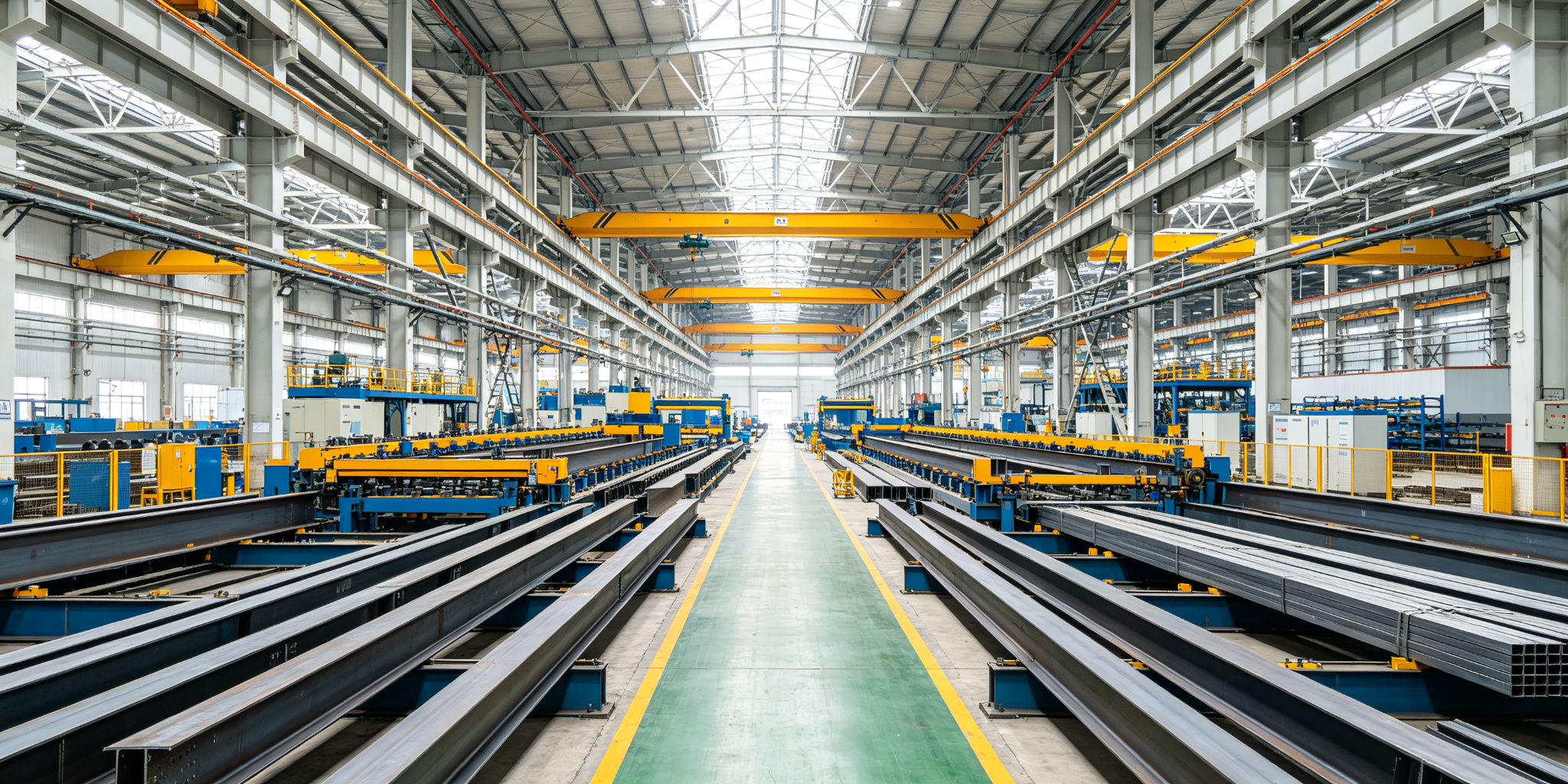

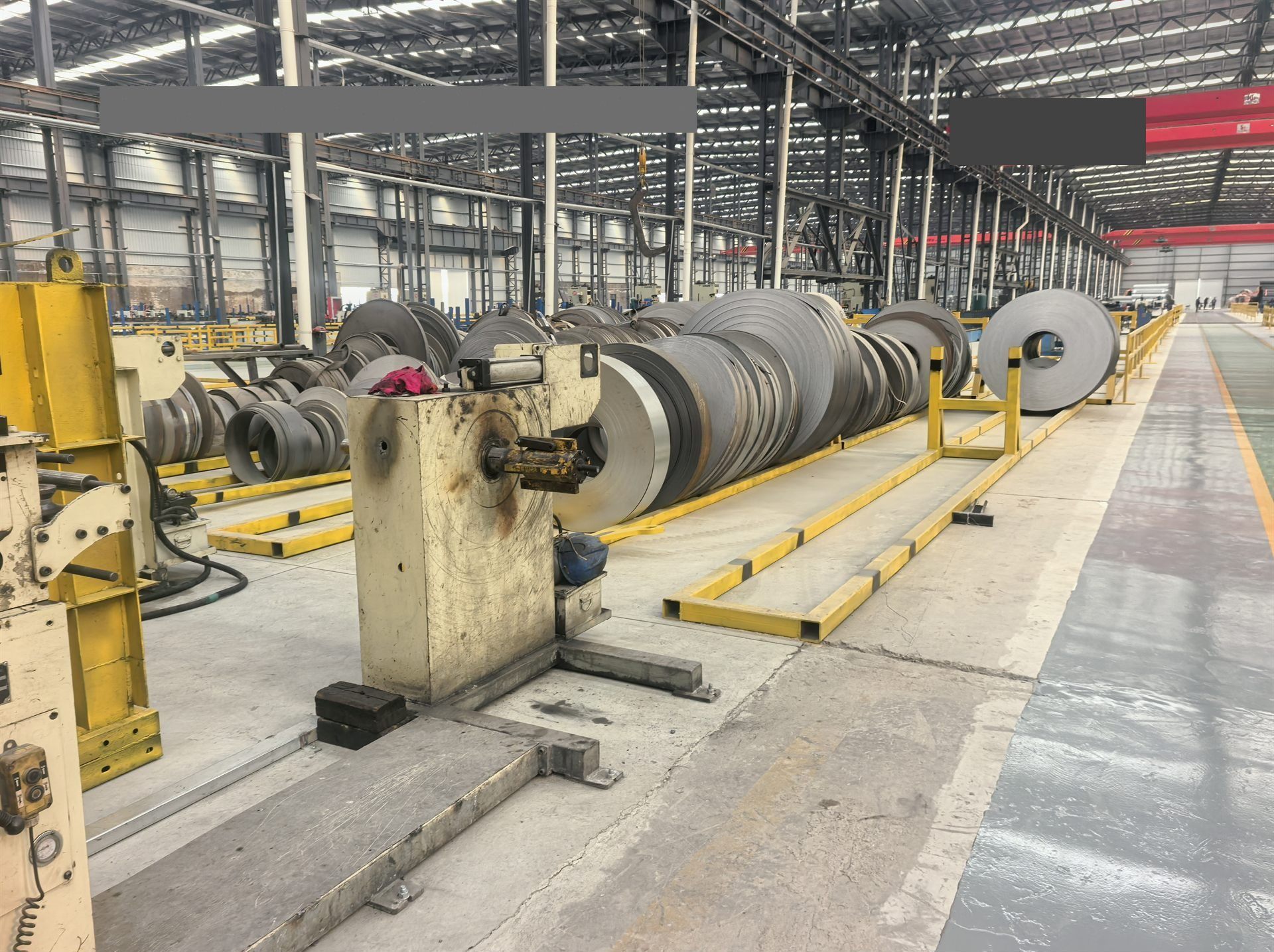

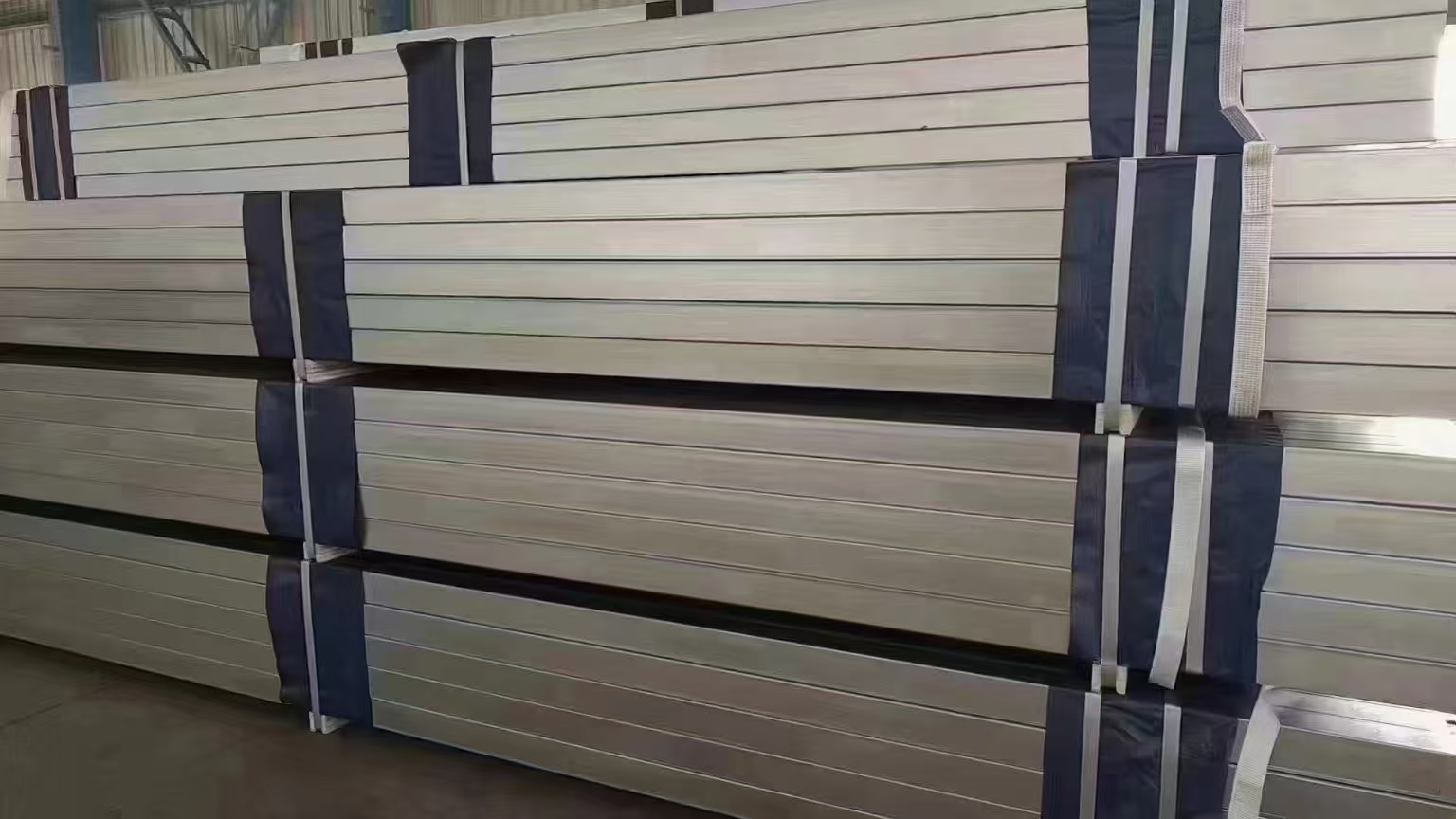

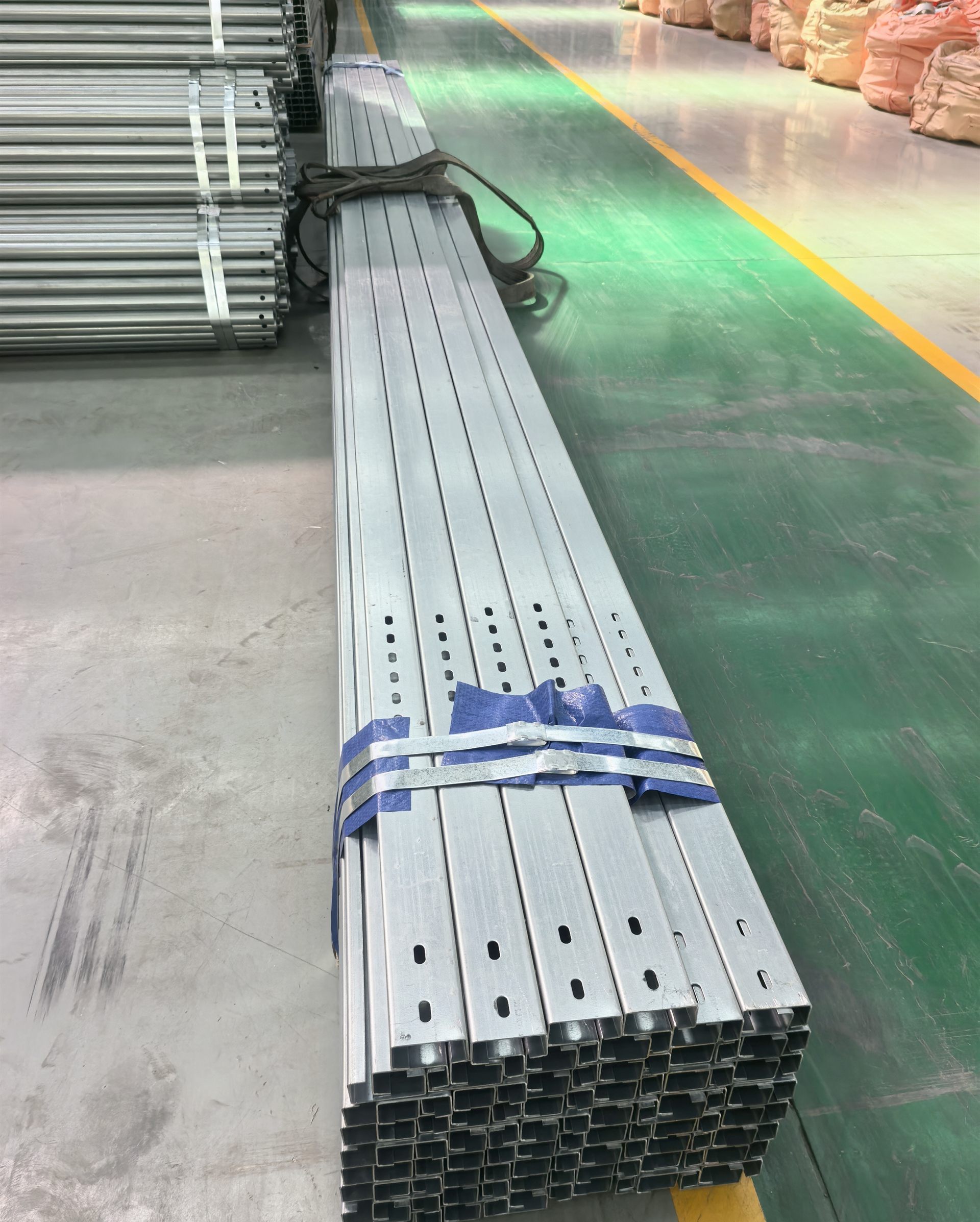

Manufacturing facility
Manufacturing

Built in Cangzhou's
Steel Heartland

Trading + Manufacturing under one roof. Our export team handles project design, documentation, and logistics — our factory handles precision forming, galvanizing, and quality control. 6-step process, 4-stage QC.

See Equipment & Capacity
8,000t
Purlin Capacity/yr
500MW
Ground Mount/yr
85μm
Min. Zinc Coating
12m
Max. Profile Length
Engineering Data

Technical Specifications

Material grades, load ratings, and standards. Full datasheets and CAD drawings available upon request.

Material Grades

GradeYieldTensileApplication
Q235B235 MPa375-500 MPaGround mounts, carports, purlins
Q355B355 MPa470-630 MPaHigh-load structures, Agri-PV
Al 6005-T5255 MPa280 MPaRoof rails, clamps
SS 304205 MPa515 MPaBolts, clamps, hardware

Load & Environmental Ratings

Wind Speed
Per project wind load calculation
Up to 60 m/s
Snow Load
Per project snow load calculation
Up to 1.5 kN/m²
Seismic
Per local building code
Zone 4 compatible
Temperature
Material operating range
-40°C to +85°C
ASTM A123 (Galvanizing)ISO 1461 (HDG)GB/T13912-2002 (HDG)AS/NZS 1170 (Wind)GB 50009 (Load Code)
Applications

Typical Application Scenarios

Reference configurations for common project types. Actual design confirmed based on site conditions and load calculations.

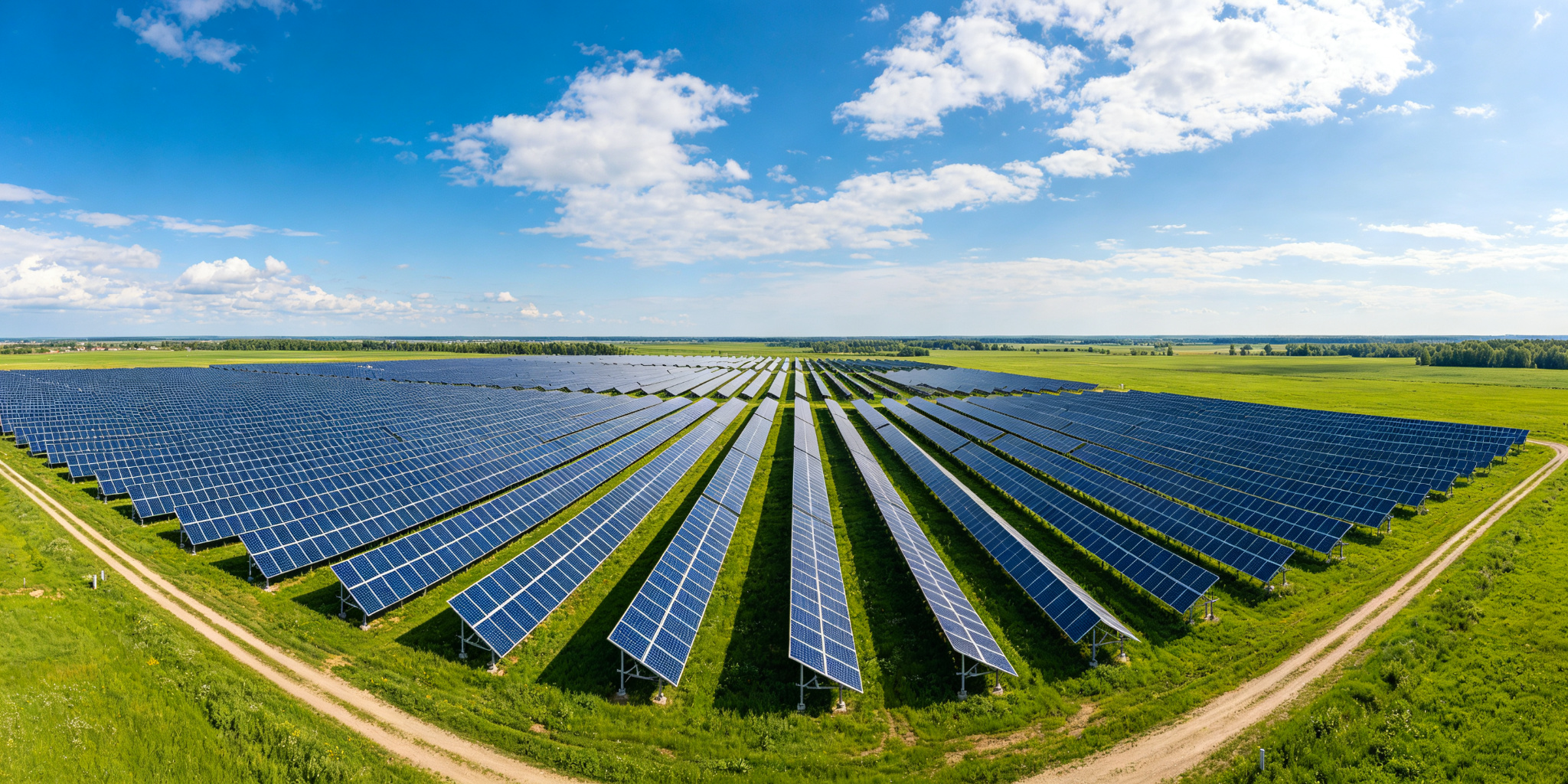

Utility-Scale Ground PV

Utility-Scale Ground PV

SystemSteel Pile Ground Mount
MaterialQ235B · HDG 85μm
Typical Size1-50 MW plants
Pile depth 1.5-2.5m, tilt 20-35°

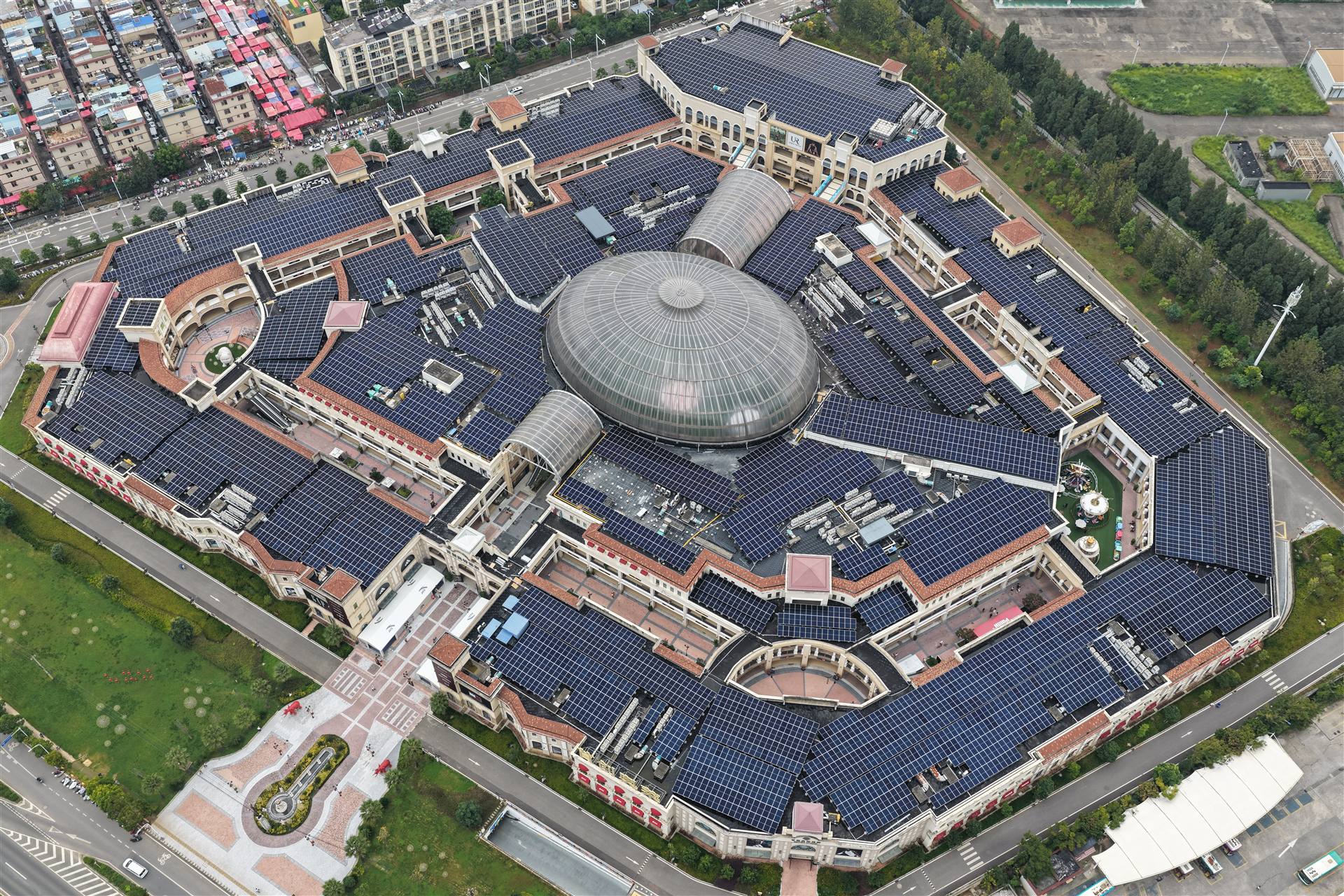

Commercial & Industrial Rooftop

Commercial & Industrial Rooftop

SystemAluminum Rail + Clamp
MaterialAl 6005-T5 · SS304
Typical Size100kW - 5MW
Metal roof / concrete roof, tilt 5-15°

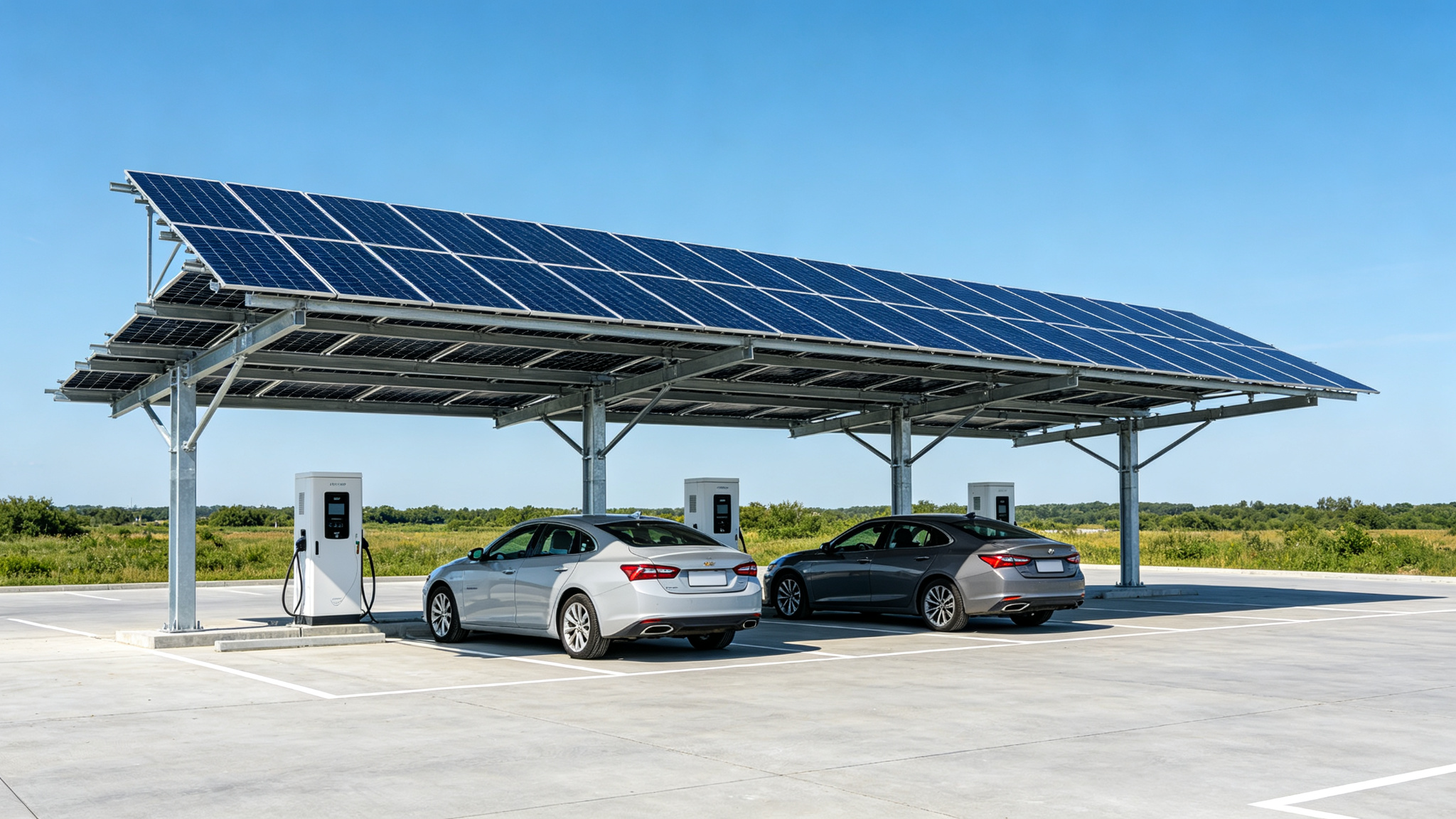

Solar Carport + EV Charging

Solar Carport + EV Charging

SystemSteel Carport Structure
MaterialQ235B · HDG
Typical Size100kW - 2MW
Clearance 2.8-3.5m, span 5-6m
Quality & Trust

Certified. Documented.

Factory tour video
Virtual Tour

Factory Video

* Full factory tour video available upon request.

Get Your Project Quote

Send us your layout, panel specs, and site conditions. We'll respond with configuration and pricing within 24 hours.

Request QuoteWhatsApp: +86 18630977633
